Screw Mount DC 5-32V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module, HCDC HD064RP
4.6 (44 items)
Limited Time SaleUS$18.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215609272 | Release Date | 2026/04/12 | List Price | US$12.00 | Model Number | 215609272 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Operating voltage DC 5 to 32V. Maximum total input / output current 20 Amp.
- Input: Maximum current 20 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.

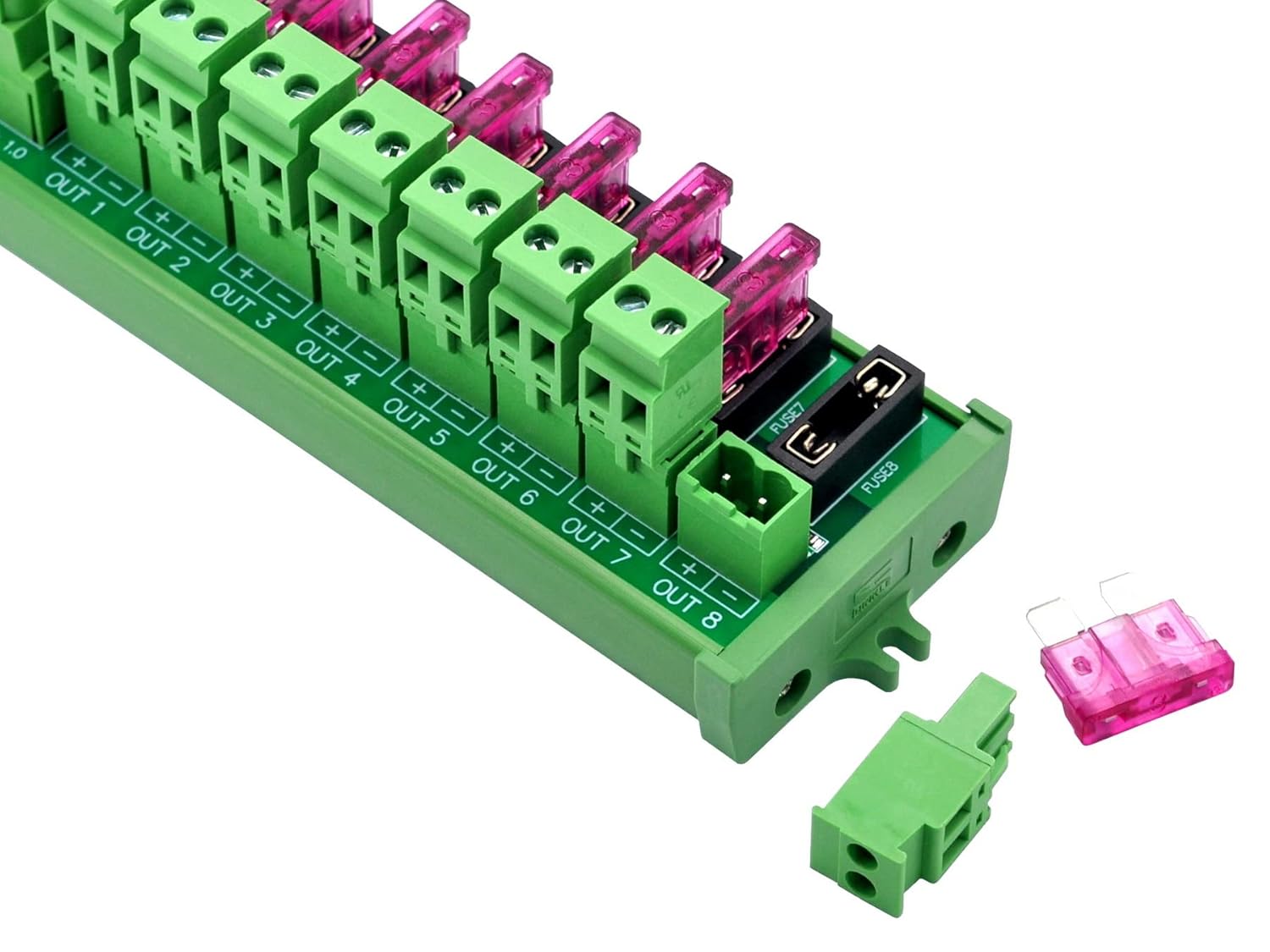

- Output: 8 position pluggable side wiring terminal blocks. Maximum current 3 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 3 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.
- High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified screw mount carrier.
| Gauge | 10.0 |
|---|---|
| Model | HD064 |
| Pitch | 5.08 Millimeters |
| Voltage | 32 Volts |
| Brand Name | HCDC |
| Unit Count | 1.0 Count |
| Part Number | HD064 |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Nylon |
| Mounting Type | PCB Mount |
| Connector Type | Screw |
| Current Rating | 3 Amps |
| Number Of Poles | 8 |
| Specification Met | Energy Rating |
| Number Of Contacts | 8 |
| Included Components | Terminal Block Power Distribution Fuse Module |
| Number of Positions | 8 |
